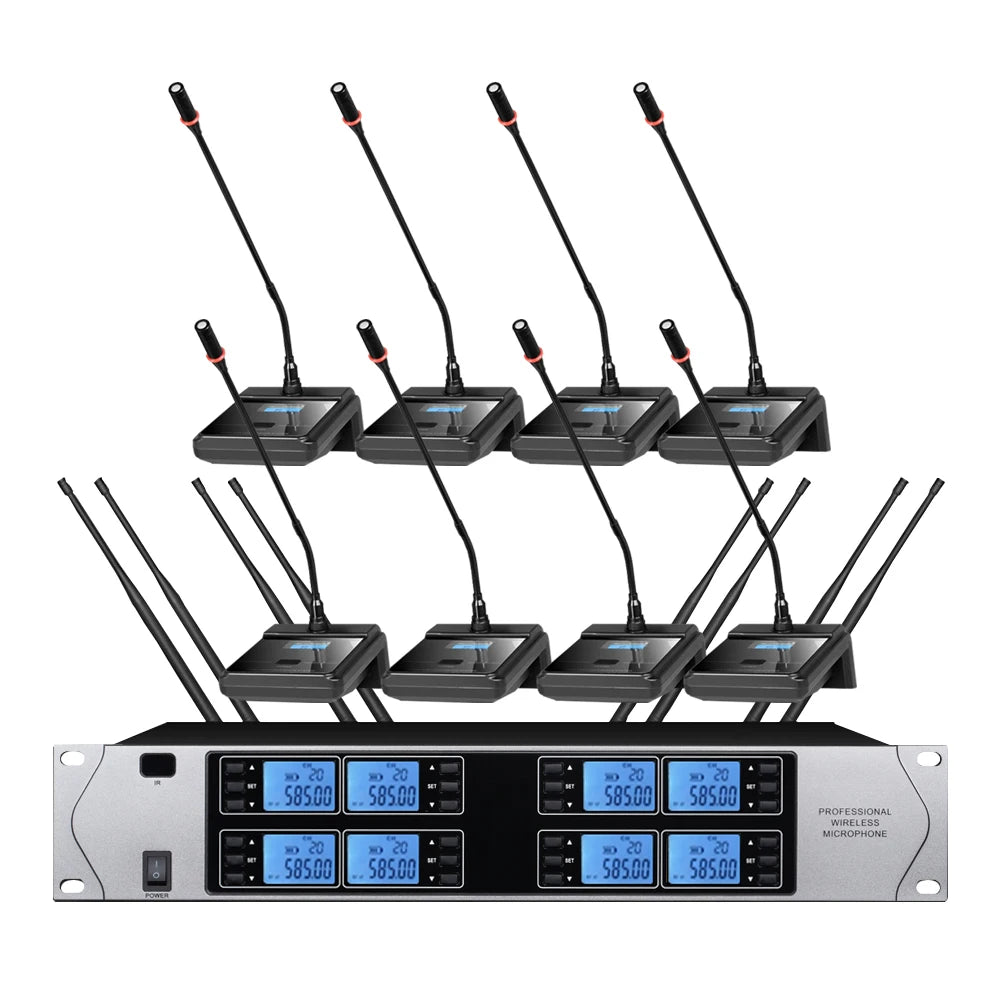

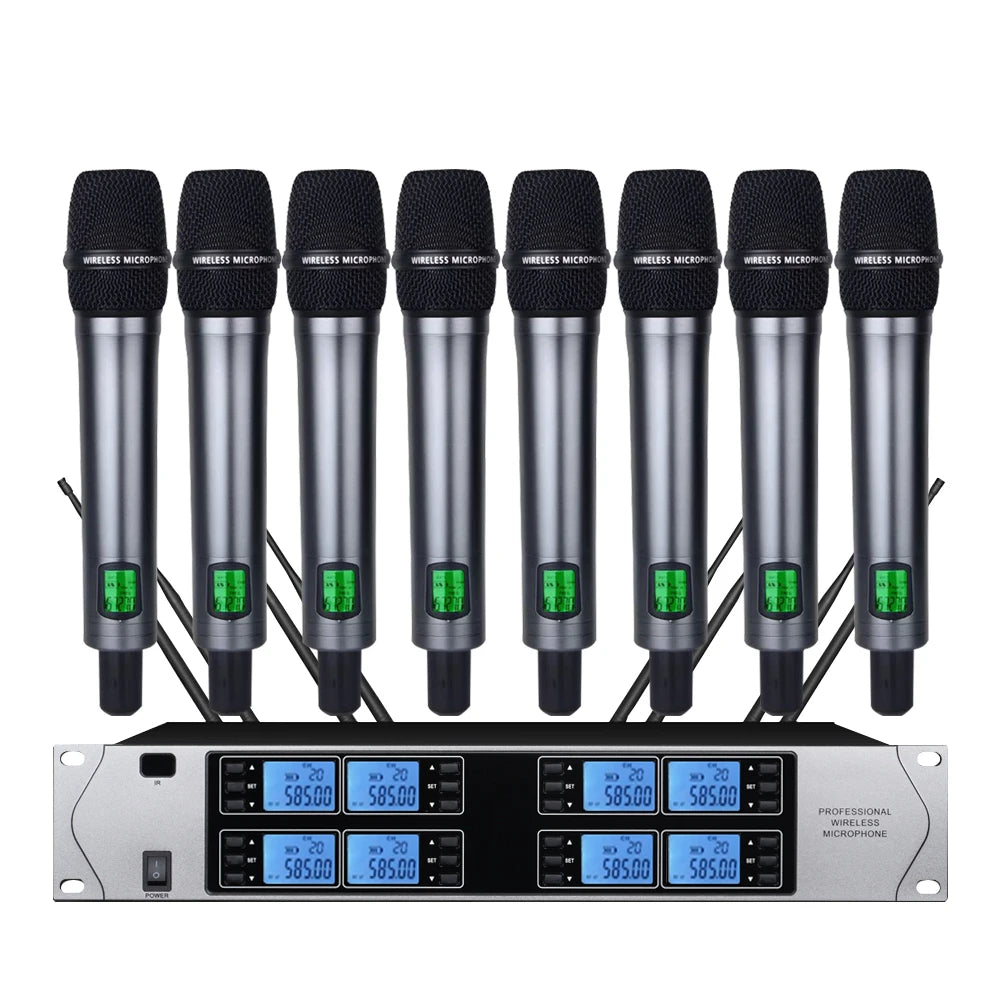

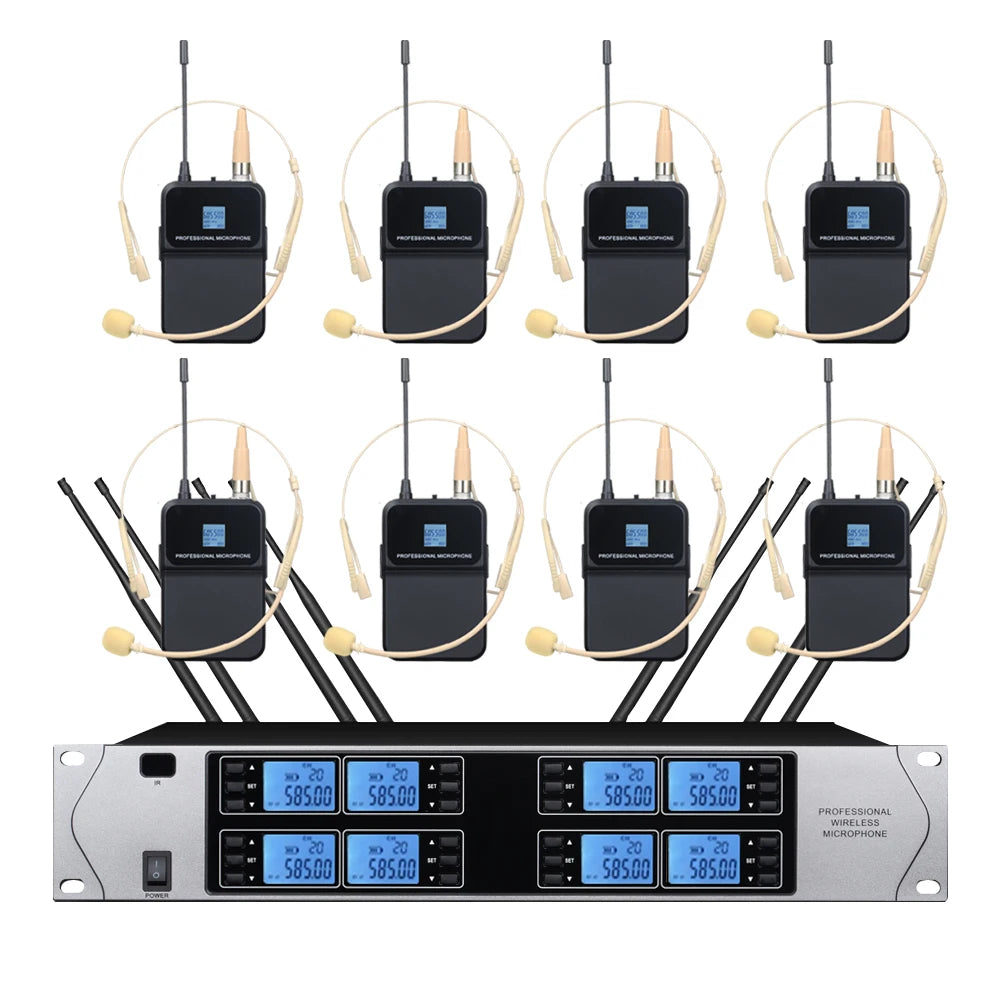

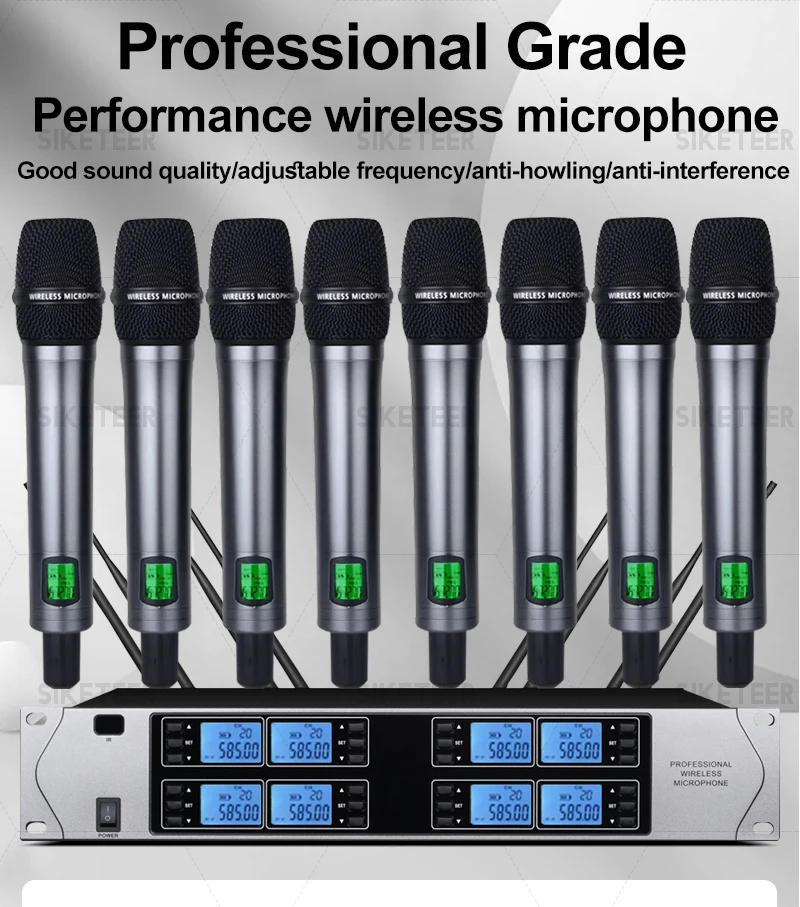

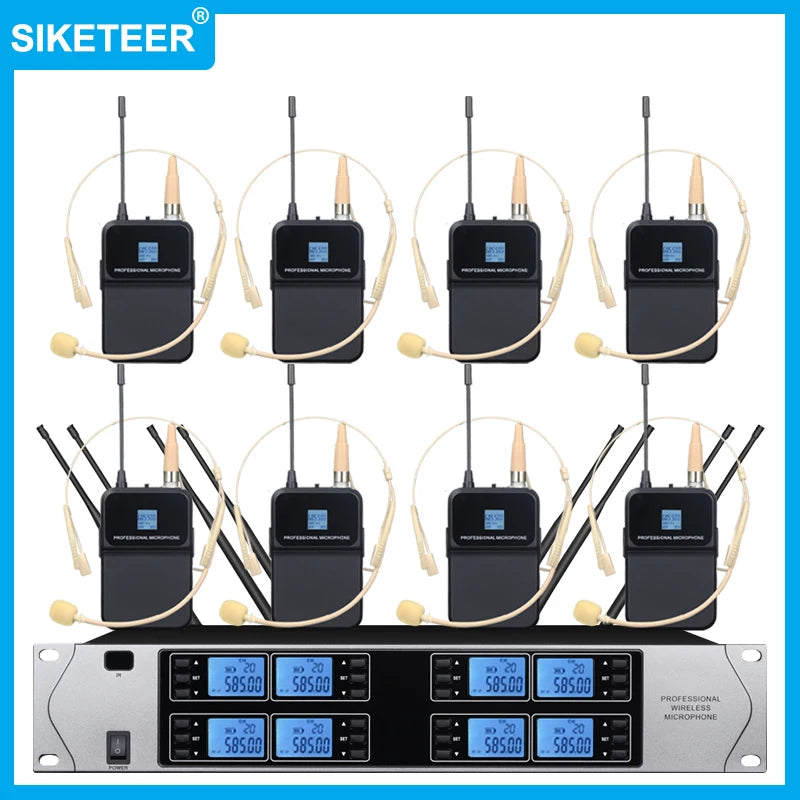

Professional UHF wireless microphone system 8-channel head-worn condenser microphone for churches, weddings, and stage microphon

1. 8-channel UHF wireless system, 50 selectable frequencies per channel;

2. LCD display provides real-time feedback on system operating status;

3. Digital audio code lock technology effectively blocks noise interference in the operating environment;

4. Utilizes the latest infrared automatic frequency binding (IR) and automatic frequency selection (AFS) technologies for simplified setup and operation;

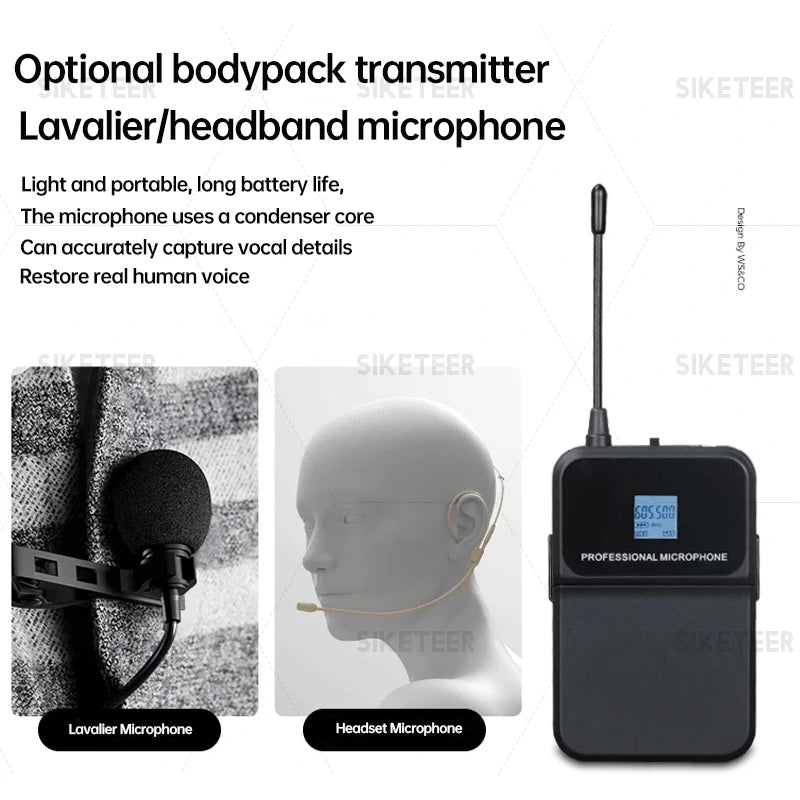

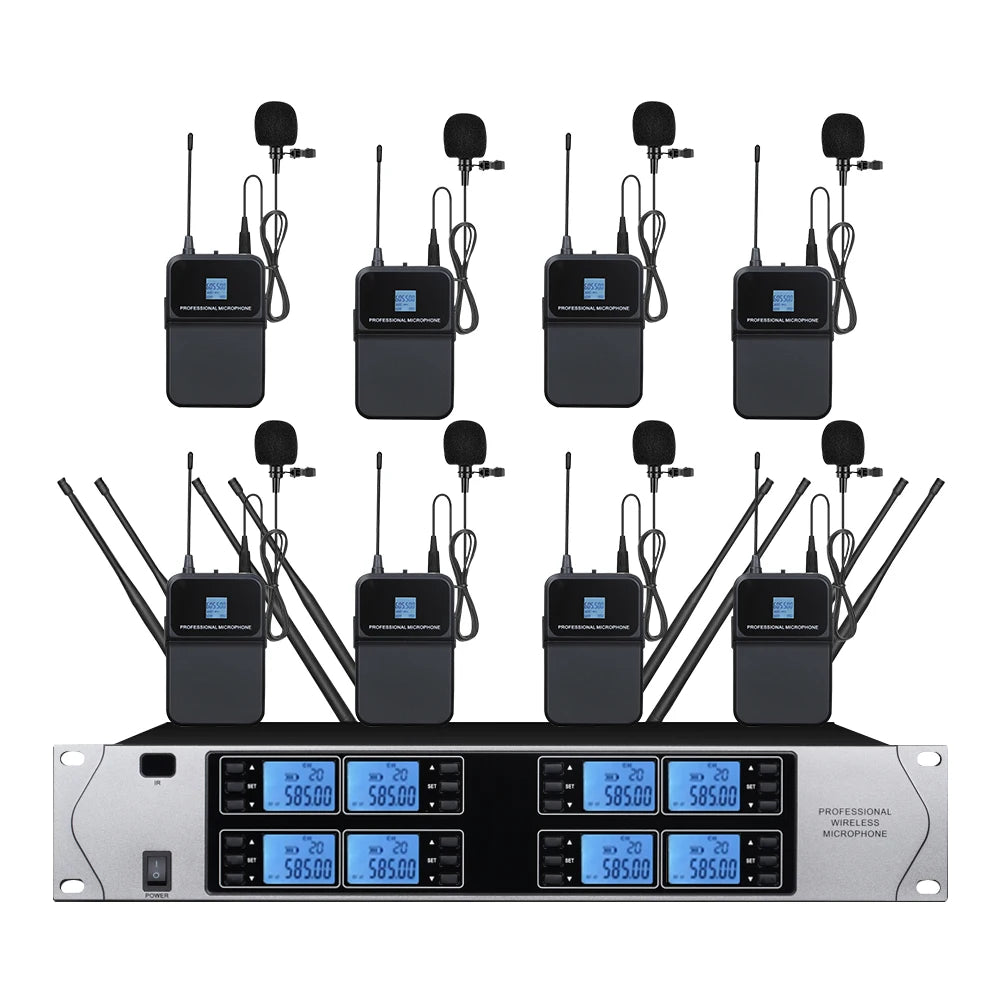

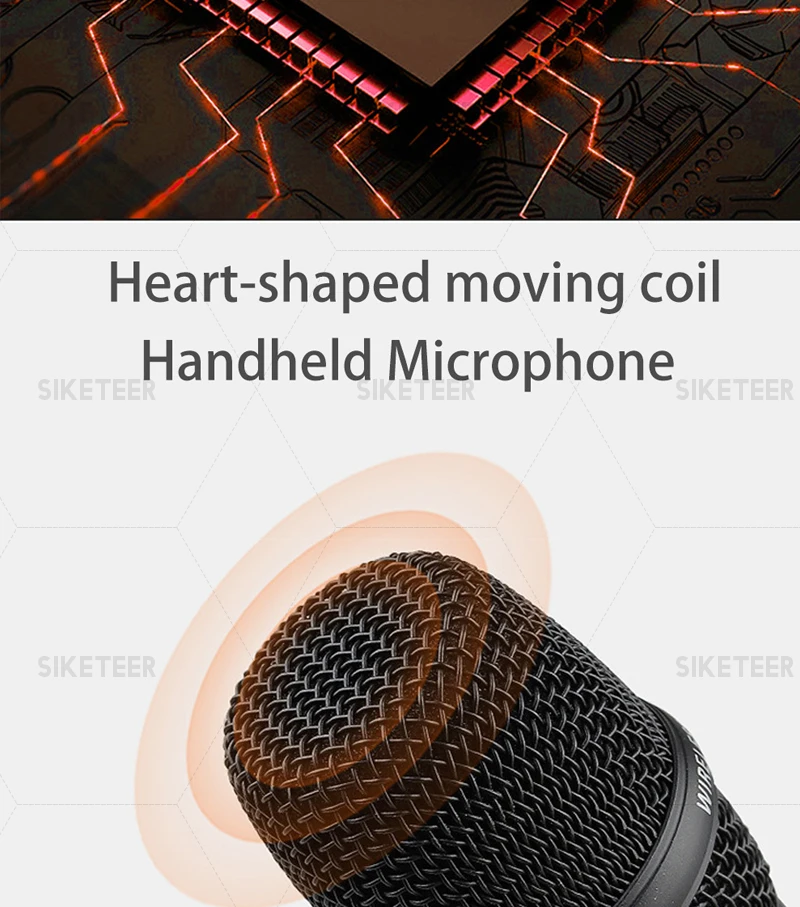

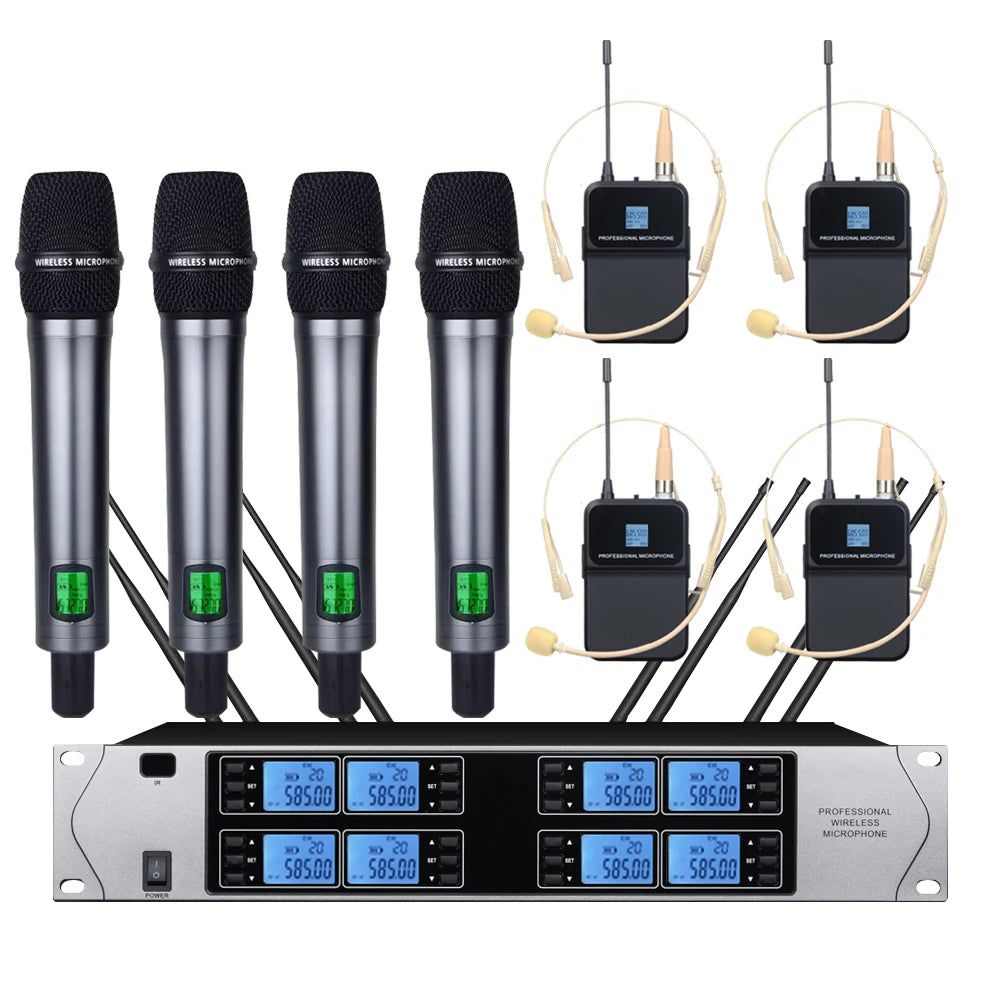

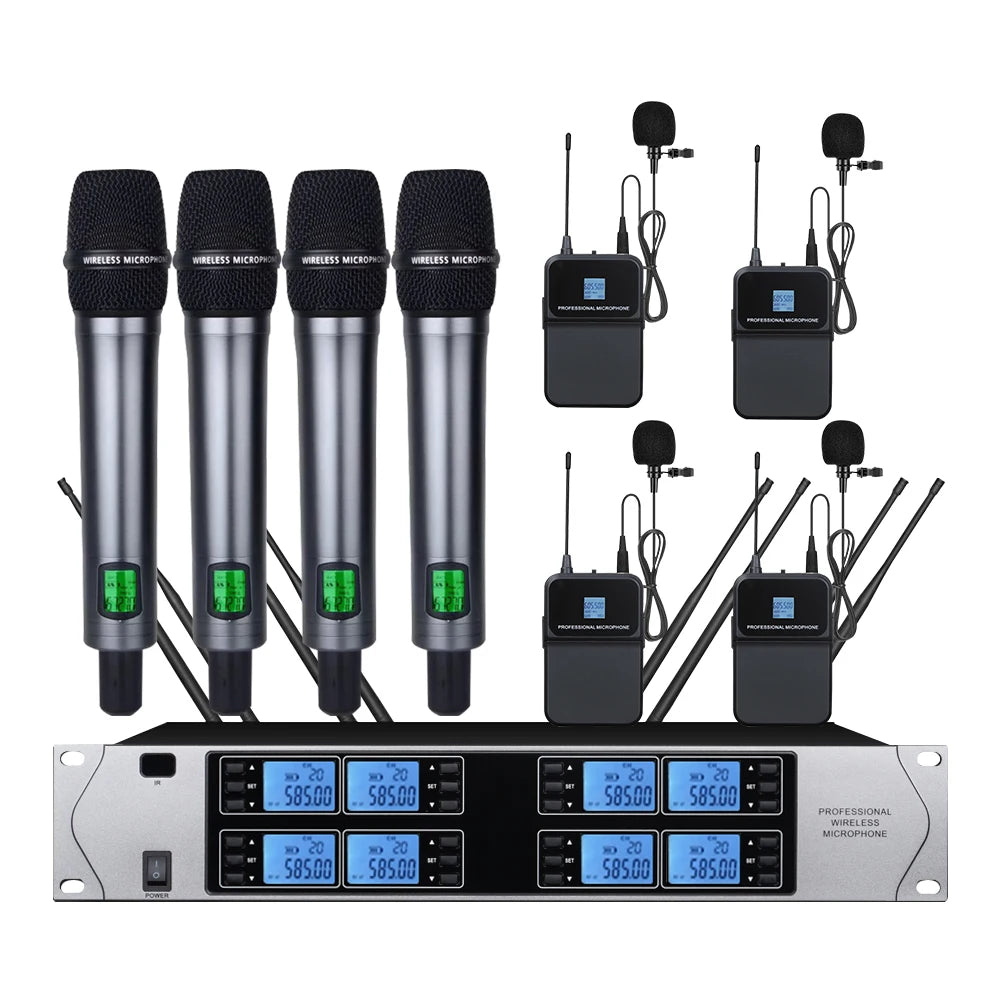

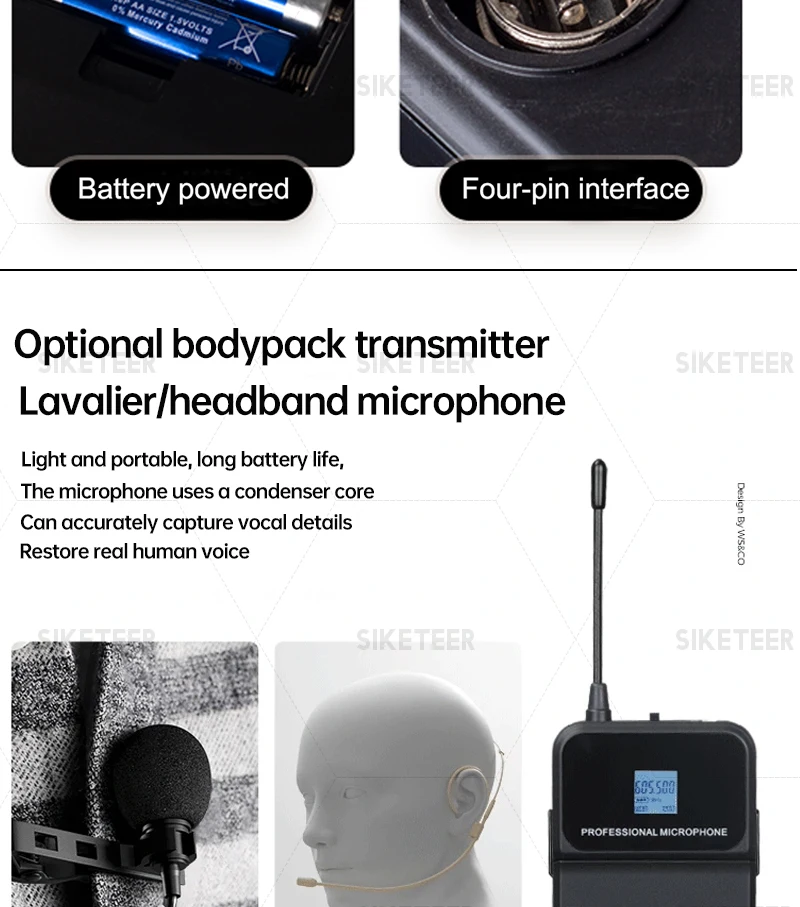

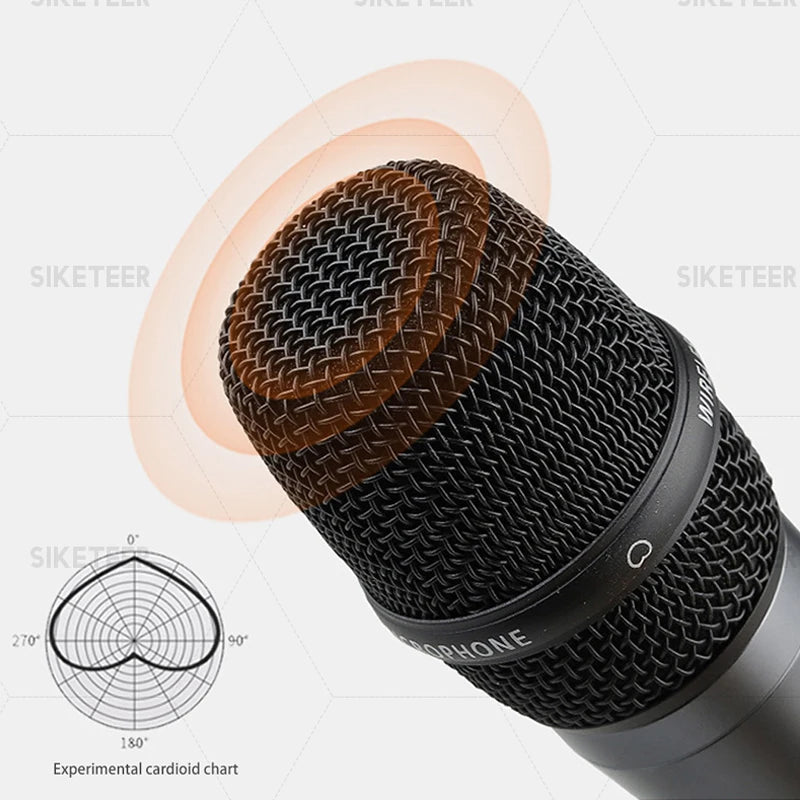

5. Four interchangeable microphones, featuring a metal handpiece for durability and stable performance. Optional handheld, lavalier, and headworn microphones are available;

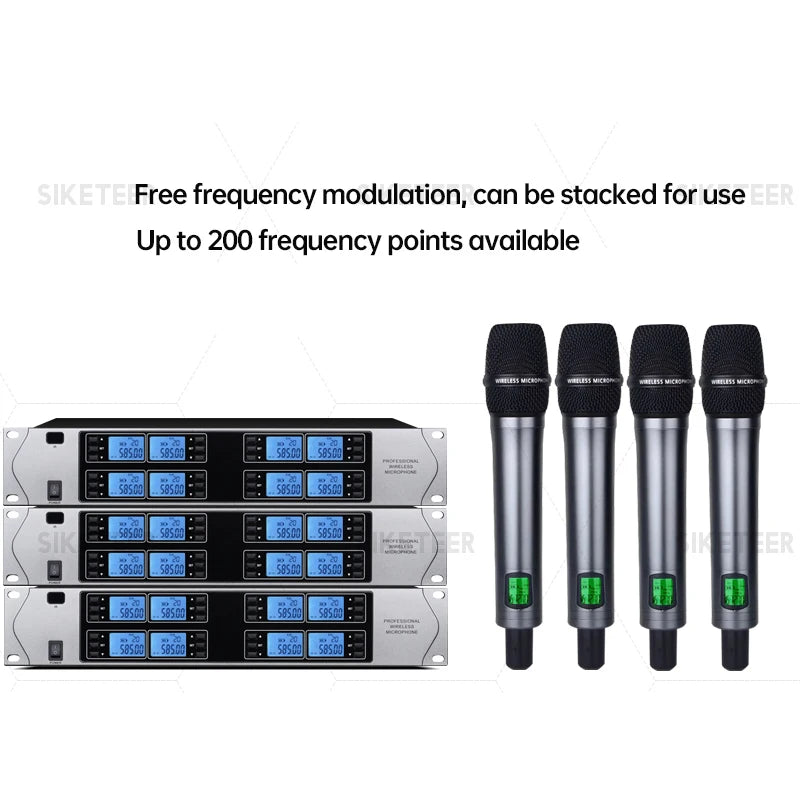

6. In ideal environments, up to three units can be stacked for simultaneous operation.

II. System Parameters:

1. General Parameters

Frequency Range: 580MHz-630MHz

(If you need other frequencies, please contact customer service)

Modulation: FM

Number of Channels: 200

Channel Spacing: 300kHz

Frequency Stability: ±0.005%

Dynamic Range: 100dB

Maximum Deviation: ±45kHz

Audio Frequency Response: 40Hz-18kHz (±2dB)

Combined Signal-to-Noise Ratio: >105dB

Combined Distortion: ≤0.5%

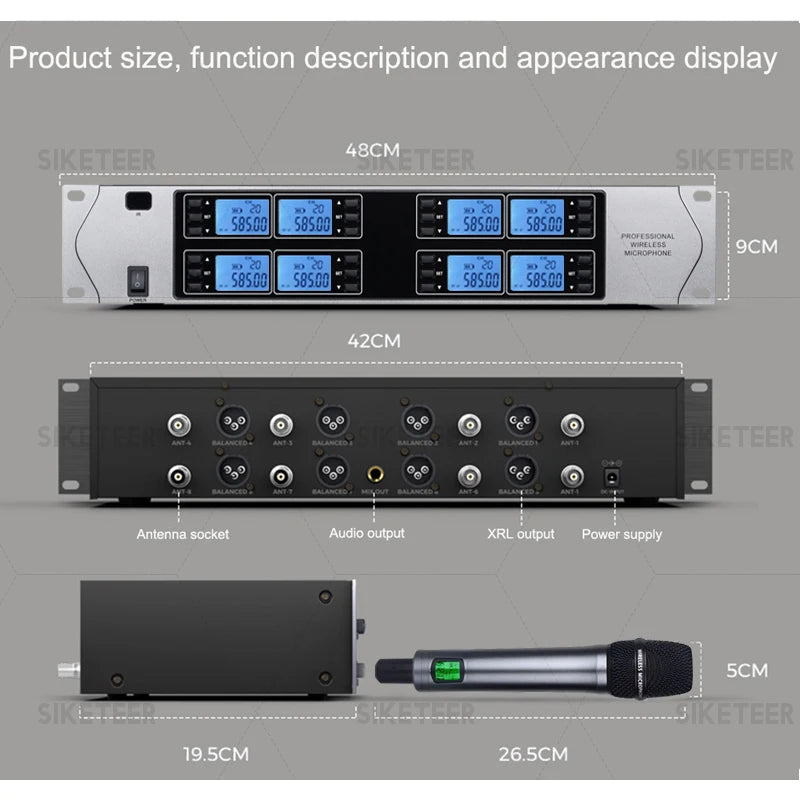

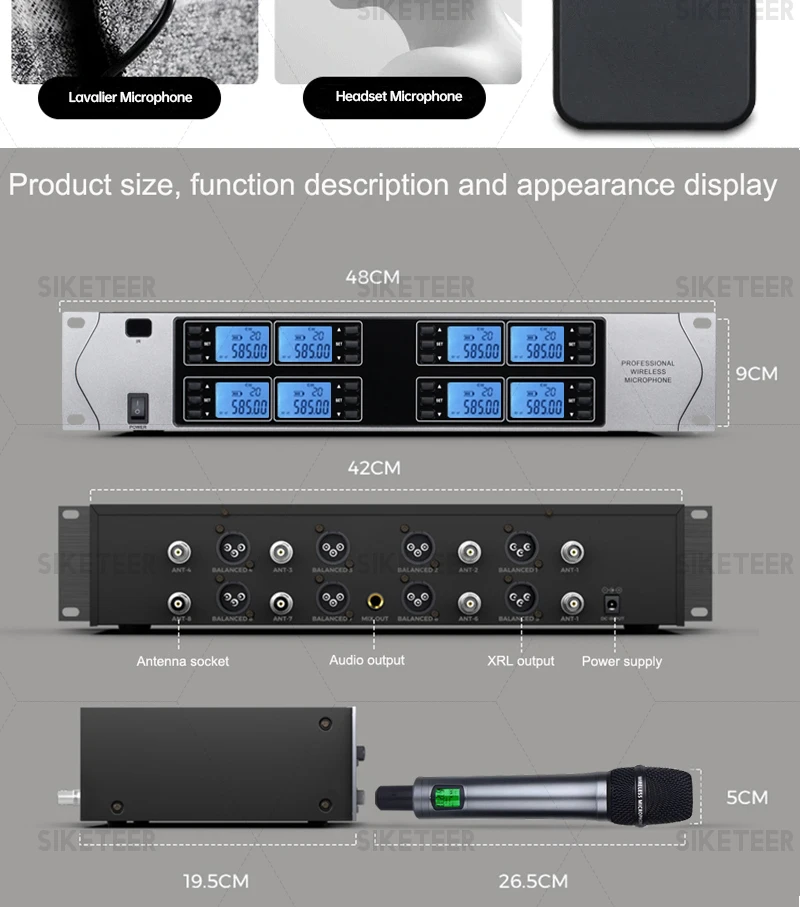

3. Receiver Specifications

Antenna: Detachable

Antenna Connector: TNC/50Ω

Sensitivity: 12dB/V (80dB S/N)

Spurious Suppression: ≥75dB

Maximum Output Level: +10dBV

Power Supply: DC 12V 800mA Input

3. Transmitter

Output Power: 30mW

Spurious Suppression: -60dB

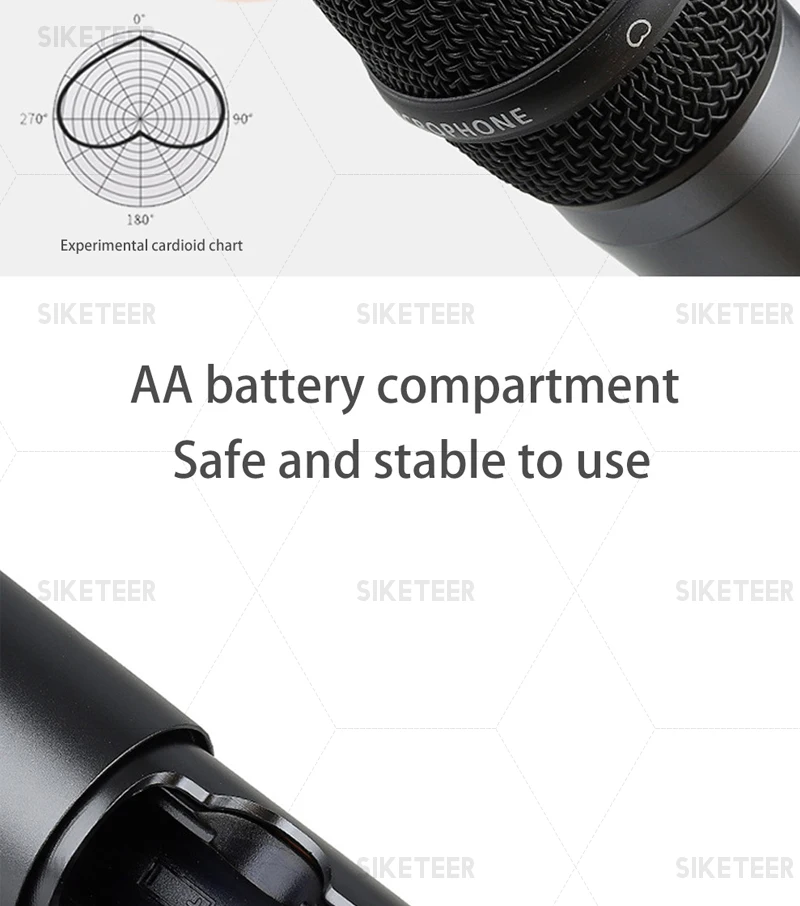

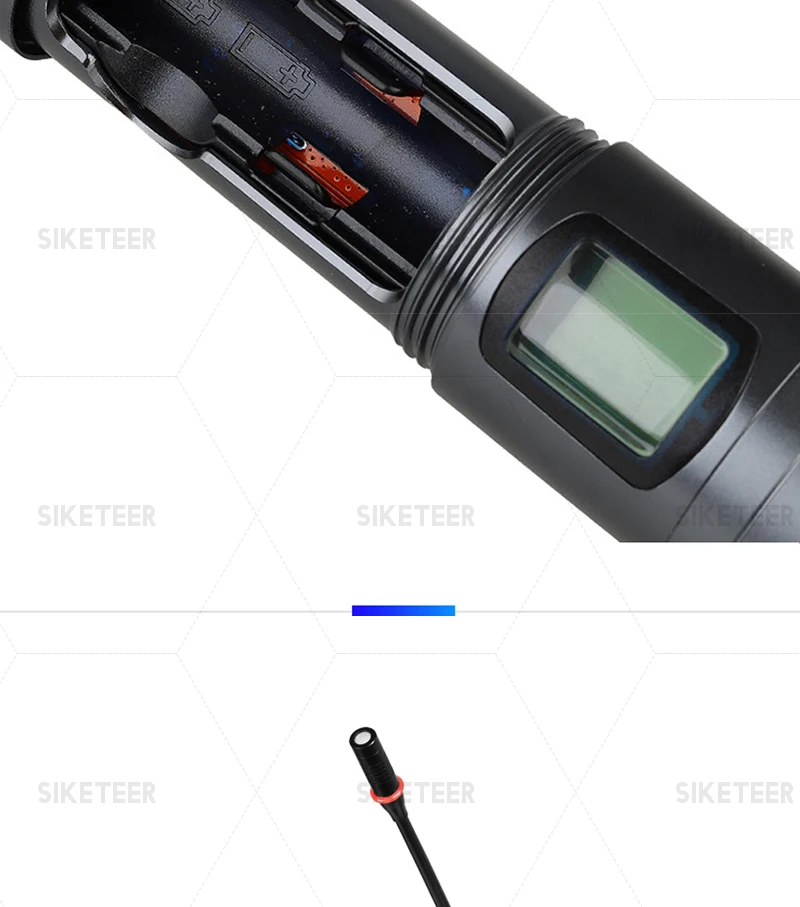

Power Supply: 2 x AA 1.5V alkaline batteries

Battery Life: When transmitting at normal power, it can be used for more than 8 hours
